SNAPNSTRUT ENGINEERING
Optional supporting copy for this section.
Produced from a specialty engineered nylon resin, SnapnStrut pipe hangers allow for larger factors of safety: at 250°F, working temperatures and for intermediate temperatures up to 480°F. For refrigeration, allowable working temperatures down to -70°F.
SnapnStrut's line of pipe hangers is produced from a high-performance, UV stabilized 6/6 nylon resin possessing exceptional long term stress resistance and chemical stability over a wide range of temperatures.

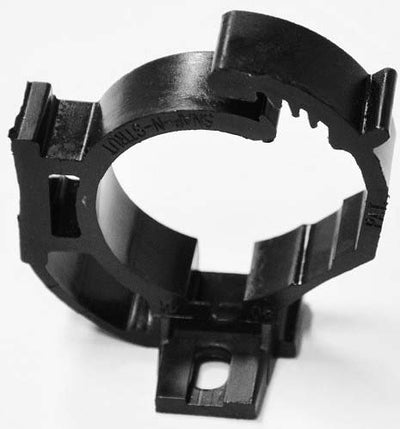

The hinged, snap-on lock arm adjusts for pipe O.D. variations, affording each hanger the ability to accommodate several different pipe sizes. The pipe is nestled in a snug fit without any crimping of its wall.
The nature of the nylon material utilized, combined with the uniquely engineered design, absorbs vibration and acts as a cushion between the piping and its supporting structure.

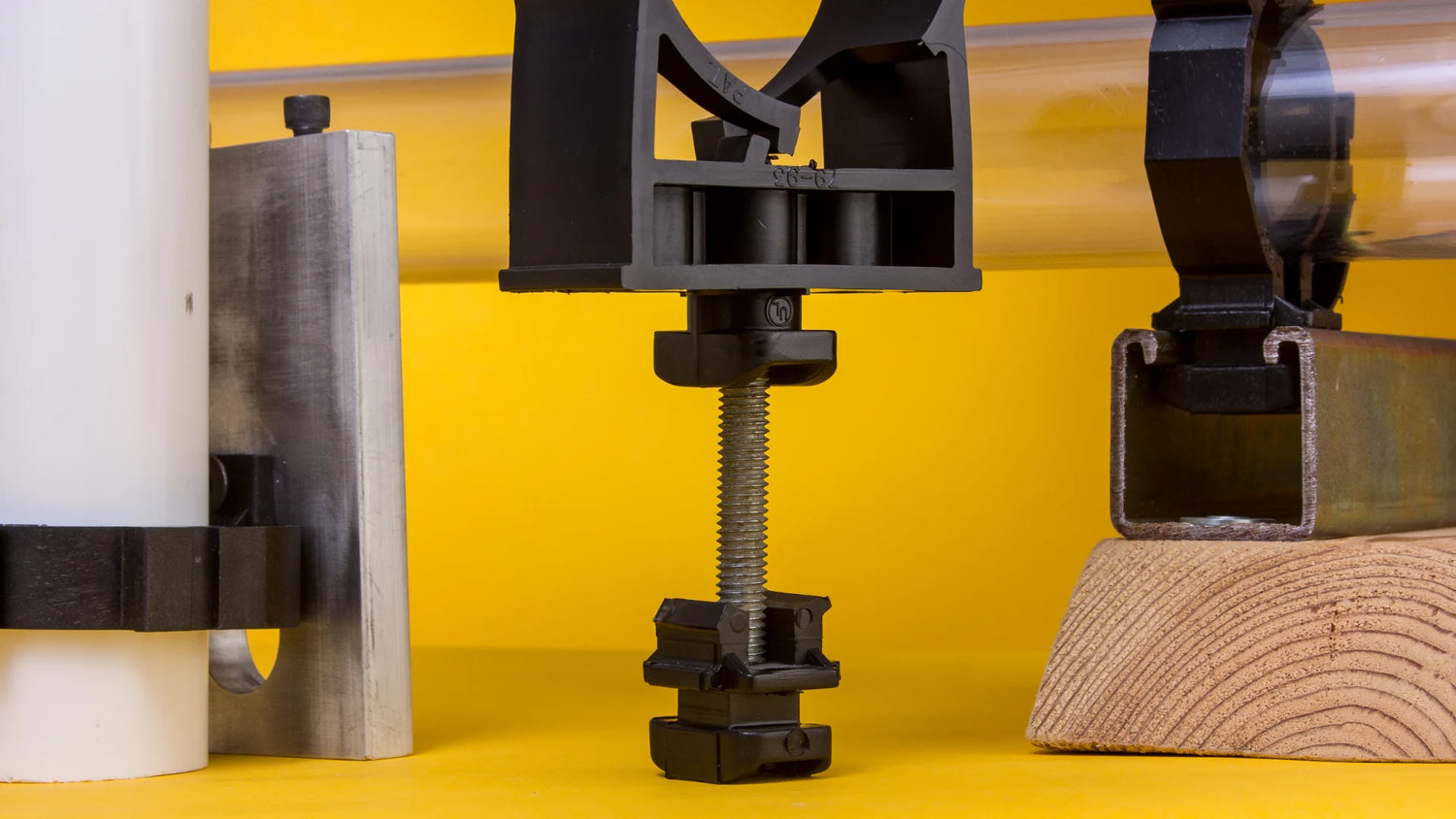

When used in a strut, the upper and lower engagement plates are designed to grip the strut and restrain lateral movement along its length.
When used in a strut, SnapnStrut P pipe support hangers are self gripping. When used on a rod, the hanger itself is threaded onto the rod. When the pipe is inserted into the hanger, the hanger can no longer turn. Thus, even the need for a lock nut is eliminated.
SNAPNSTRUT pipe hangers and supports offer better performance and versatility than most other plastic pipe hangers on the market. Tested for greater loads and extreme temperatures, SNAPNSTRUT hangers and supports are engineered for high strength using high temperature nylon resin that can exceed working temperatures of 250°F.
The non-metallic design is corrosion & chemical resistant (including Freon and Ammonia), making SNAPNSTRUT hangers the ideal choice for plumbing and electrical projects. Polypropylene is used for lighter duty applications and special corrosion conditions.
